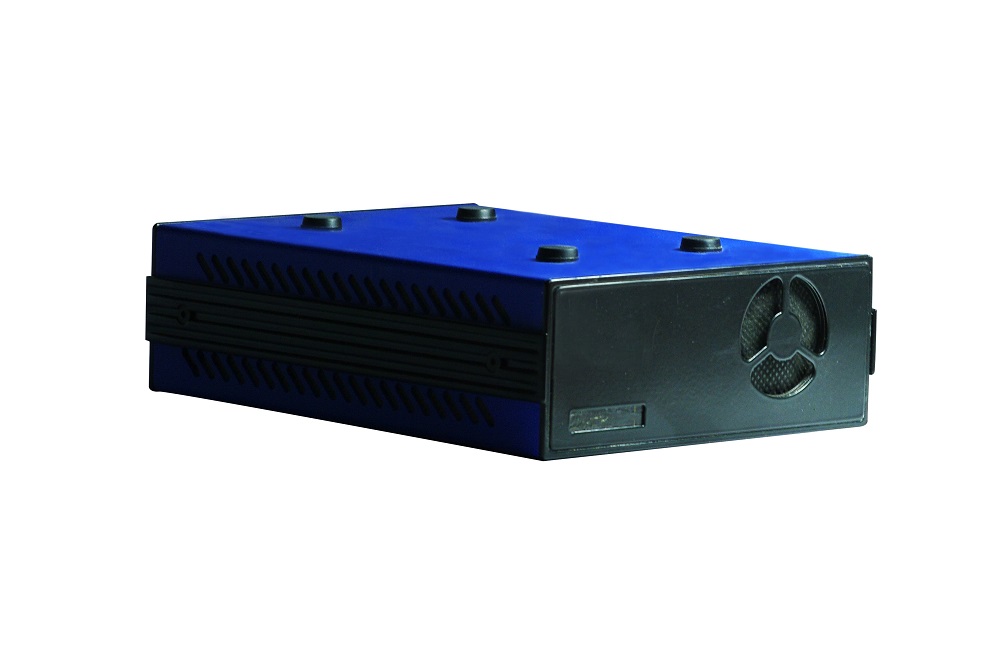

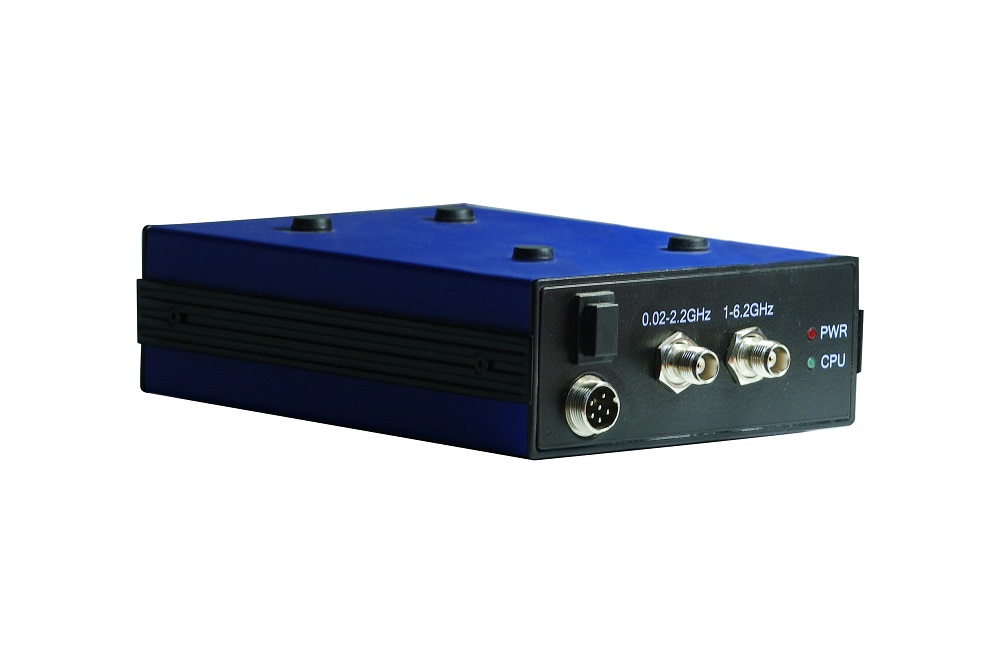

Dolphin Spectrum Analyzer

Dolphin is a real time spectrum analyzer built on software-defined radio (SDR) technologies. Its main parameters are:

• Input frequency range : 20 MHz – 6,2 GHz;
• Scanning channel width: up to 50 MHz;
• Sensitivity with S / N ratio equal 10 dB, in 10 MHz channel: -120 dBm;
• Frequency tuning time: 50 µs;
• Frequency setting step 100 KHz;
• Synthesized frequency error: less than 10 Hz;
• Climate operational diapason: -20…+85 C°;
• Configuration over TCP / IP, Ethernet 100Mbit;
• Power supply from direct current network 8-30 V
