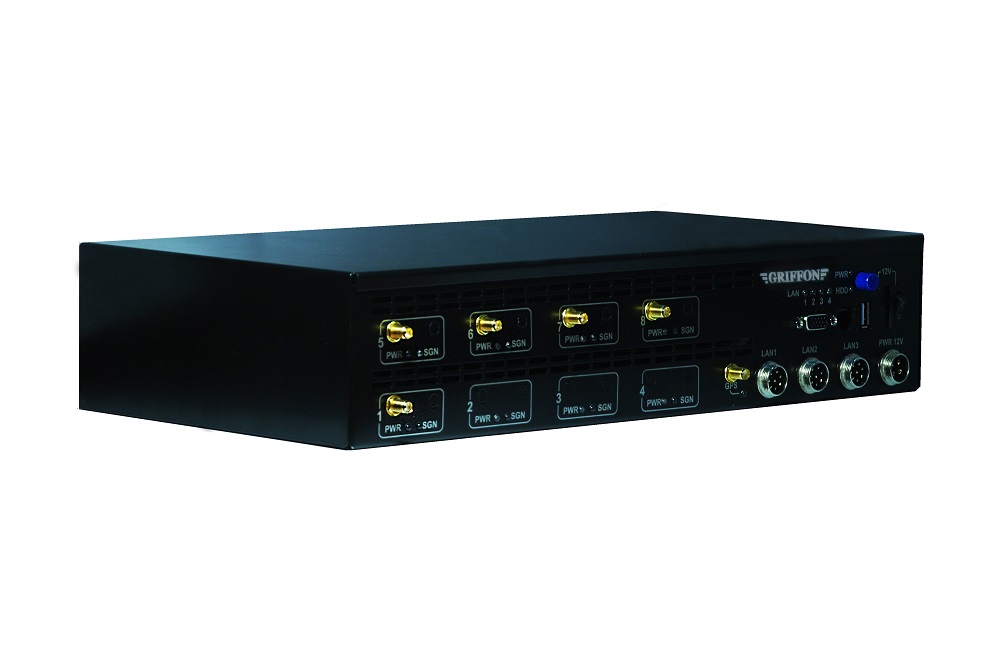

Griffon image

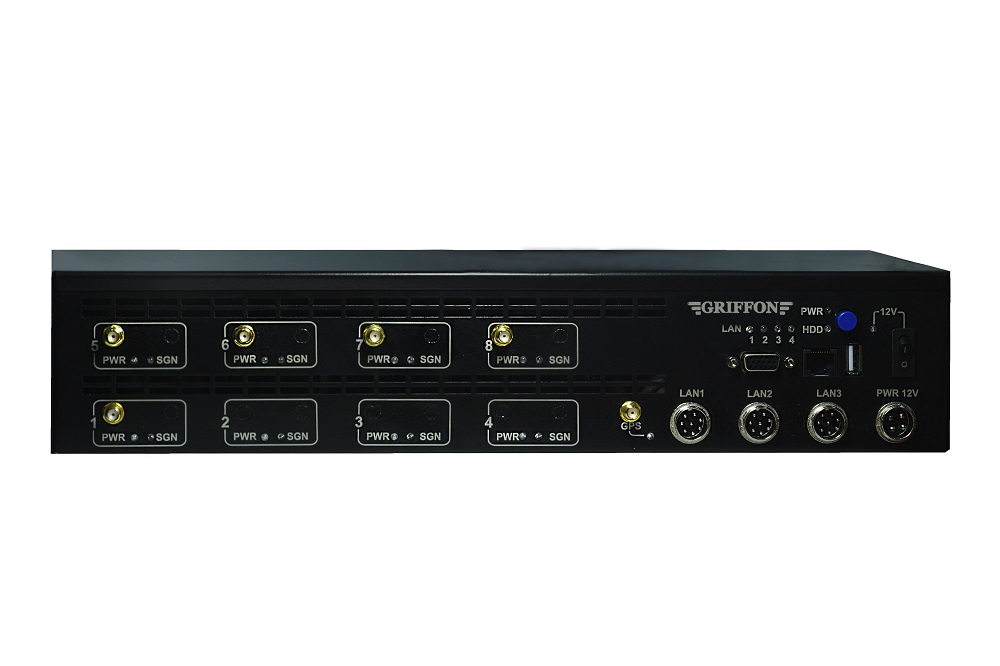

Griffon device photo

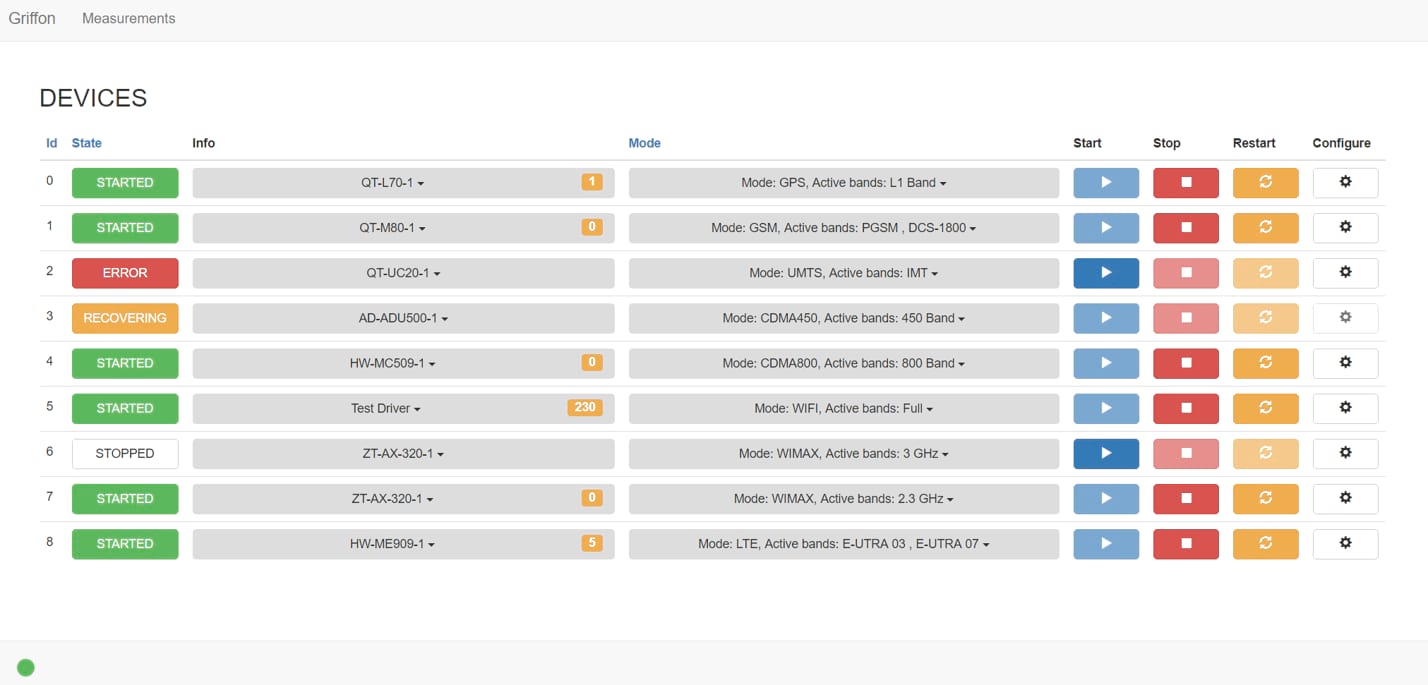

Griffon web-application
Griffon image
Griffon device photo
Griffon web-application

Griffon is designed for radio signals detection and identification.

Supported technologies:

  • GSM (850/900/1800/1900);
  • CDMA-450 (CDMA-2000 EVDO rev. A);
  • WCDMA (FDD/TDD 850, 900, 1700, 1900, 2100 MHz);
  • LTE/LTE Advanced (FDD/TDD 1900-1920 MHz, 1980-2000 MHz and other standard frequency diapasons);
  • Wi-Fi (802.1 a/b/g/n/ac);
  • WiMAX (2400/3400).

Device equipped with onboard GPS reciver, and can indetify next signal parameters: MCC, MNC, LAC, CellID, BSIC, ARFCN/UARFCN/EARFCN, Оffset/Pilot PN, SID, NID, channel type, frame type, ESSID, BSSID, STA/AP type, MAC address, signal width. Griffon can operate with nonstandard Wi-Fi channels, and indetify TCH channels in GSM networks. Integrated 1 Gbit commutator for additional modules integration, Griffon can communicate with any number of external devices through WebSocet. Griffon is controlled via modern, user friendly Web-interface.
